JWELL Nişasta Doldurulmuş Bio-plastik Tərkib Xətti
Mənşə yeri: | Çin |
Marka adı: | jwell |
Sertifikatlaşdırma: | ISO CE UL TUV |
Rəqabət üstünlüyü: | Yüksək keyfiyyət, yüksək tutum, yüksək sabitlik, dünya miqyasında satış sonrası xidmət, 40 ildən çox inkişaf təcrübəsi |
Applications
Disposable lunch boxes, knives and forks, straws, cups, shopping bags, courier bags, mulching film and other degradable products.
təsvir

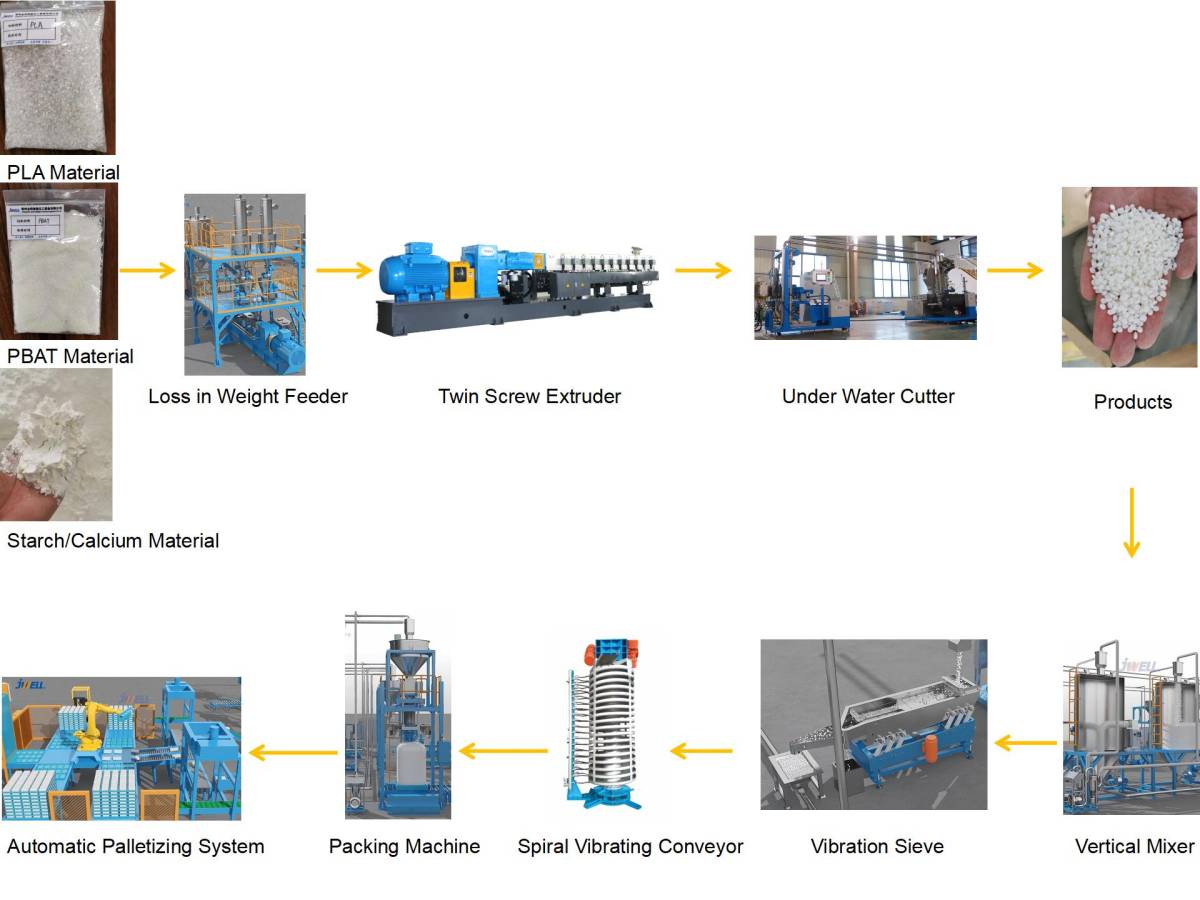

Starch filled bio-plastic compounding line is composed of four parts. They are dosing system、compounding system、underwater cutting system、downstream auxiliary equipment.
Dosing system contains vacuum loader for pellet、refill silo for pellet、single screw loss in weight feeder、vacuum loader for powder、refill silo for powder、twin screw loss in weight feeder、liquid loss in weight feeder.
According to the independent and accurate dosing system, raw material of bio-plastic, starch and plasticizer are added to the twin screw extruder, which has a high degree of automation and strong elasticity of formula adjustment.
Compounding system has control cabinet、gearbox、safety clutch、main extruder and main motor. Efficient heating and precise control to ensure stable,reliable and long term production.
Underwater cutting system includes water circulation system、cutter、water tank、dewatering unit. The closed system is enviromental with no emission of smoke and dust.
Müsabiqəli Advantage
model | L / D nisbəti | Sürətləndirmək | motor gücü | Tork səviyyəsi | İstinad üçün tutum | Tipik düstur |
CJWH-52 | 40-56 | 300 rpm | 45KW | 9N.m/sm3 | 150kg / saat | Bio-plastik + 55% nişasta +% 15 qliserin |
CJWH-65 | 40-56 | 300 rpm | 75KW | 9N.m/sm3 | 240kg / saat | |
CJWH-75 | 40-56 | 300 rpm | 132KW | 9N.m/sm3 | 440kg / saat | |
CJWH-95 | 40-56 | 300 rpm | 250KW | 9N.m/sm3 | 820kg / saat | |
CJWS-52 | 40-56 | 300 rpm | 55KW | 11N.m/sm3 | 190kg / saat | |
CJWS-65 | 40-56 | 266 rpm | 90KW | 11N.m/sm3 | 310kg / saat | |
CJWS-75 | 40-56 | 300 rpm | 160KW | 11N.m/sm3 | 550kg / saat | |
CJWS-95 | 40-56 | 300 rpm | 315KW | 11N.m/sm3 | 1060kg / saat | |
CJWS-75 Plus | 44-56 | 330 rpm | 200KW | 13.5N.m/sm3 | 700kg / saat | |
